Steel Coil
Product Description:
Product classification:
Steel Materials
Product model:
Product details
Name

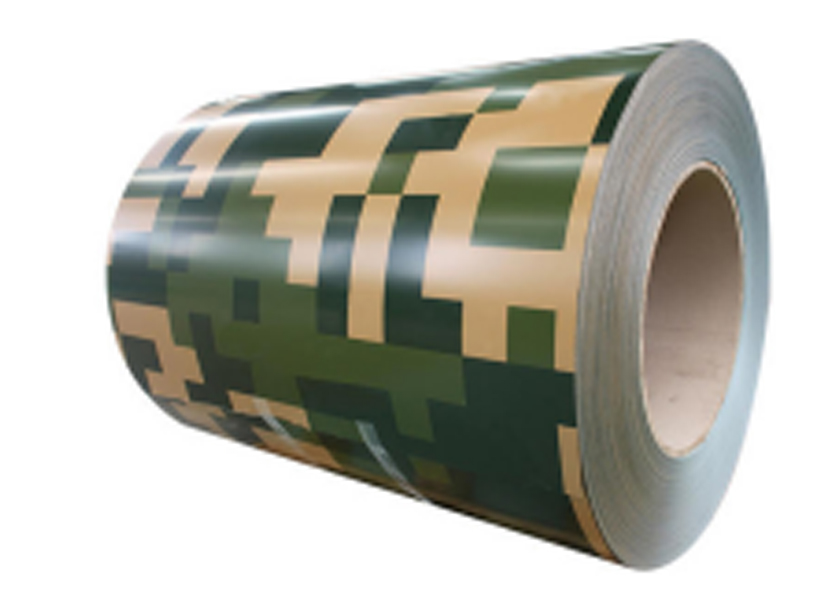

Prepainted Steel Coils
Type of
substrate
Hot dip galvanized, Galvalume, Electro galvanized,
Zinc alloy, Cold rolled
steel, Aluminium
Thickness
0.12-2mm
Tolerance
Thickness: ± 0.01mm
Width
600-1250mm  ( Normal:1250, 1200,1000,914 mm)
Top Paint
10-25 micron(Normal:10-12mic)
Back paint
5-12 micron(Normal:5-7mic)
Coating
Zn coating
AZ coating
30-400gsm
30-400gsm
Coil weight
3-9 tons or as your requirement.
Coil ID
508/610 mm
Grade
Galvanized
Galvalume
SGCC/DX51D+Z, DX52D+Z,
SGCD/DX53D+Z,SGCE/DX54D+Z,
SGCH.......
DX51D+AZ, DX52D+AZ, DX53D+AZ,
DX54D+AZ,SGLCC,SGLCD,SGLC4
40,SGLHC........
Coating type
Top paint: PE, SMP, HDP, PVDF, PU
Functions: Decorative, Machinability, Weather resistance,
Scrath resistance, Stain resistance, Chemical resistance,
Adhesion resistance
Primer paint: Polyurethane, Epoxy, PE
Functions:Machinability, Corrosive resistance, Adhesion,
Scrath resistance
Back paint: Epoxy, Modified polyester
Functions: Scrath resistance, Bending adhesion,
 Corrosive resistance
Type of
coating
process
Front: Doulbe coated & double drying
Back: Double coated & double drying,
single coated & double drying
Double coated & double drying
is used for corrugated sheet
Double coated & single drying is for sandwich panel
Packing
Standard export package .Plastic film in the first layer,
second layer is Kraftpaper.
Third layer is galvanized sheet.
Application
Building industry ,structural use, roofing,
commercial use ,household appliance, industry facilities,
office buildings
